TegraSystem Remote facts
- User-friendly equipment for materialographic preparation in enclosed cells
- Reliable handling of isolated materials
- Easy installation in enclosed cells
- Robust and reliable
- Easy to use
- Remote operation
- Remote handling of specimens
- Radiation-resistant materials
- Minimal radioactive waste
User-friendly equipment for materialographic preparation of isolated materials in enclosed cells.
Easy handling
Adapted for remote operation and remote handling of specimens, the equipment enables changing of consumables between preparation steps and is operated using touchpad controls. Manipulation is simplified by using the MDSystem with polishing cloths and magnetic fixation of grinding and polishing discs.
Easy to clean and decontaminate
Special design and surface treatment of the stainless steel or aluminum cabinets enable easy cleaning. The tray on the grinding and polishing machines is detachable for easy and safe removal of contaminated debris.
Easy maintenance
A sturdy, reliable design minimizes the need for service and repair. The equipment can be moved and turned in the enclosed cell for easy access. Maintenance and exchange of vital parts including motors, belts, and plastic tubes can be carried out in the cell using manipulators.
Facts
Model types

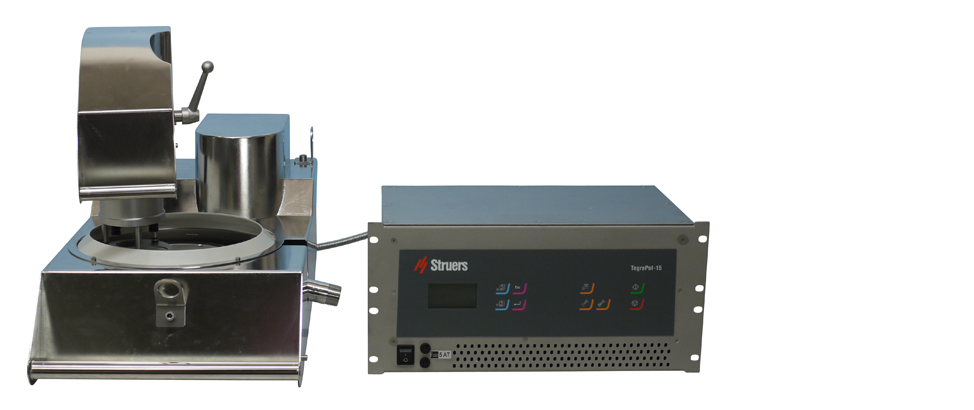

TegraSystem Remote for enclosed cells
Grinding/polishing machine with variable speed (40-600 rpm in steps of 10 rpm).For disk 200 mm (8.0") dia. 370 W motor. Complete with control box with electric parts and controls for rack mounting outside the enclosed cell. Discs are ordered separately. Length of supply cable is 8.0 m; if other length is wanted, specify when ordering.
1/3 x 200–240 V / 50-60 Hz.

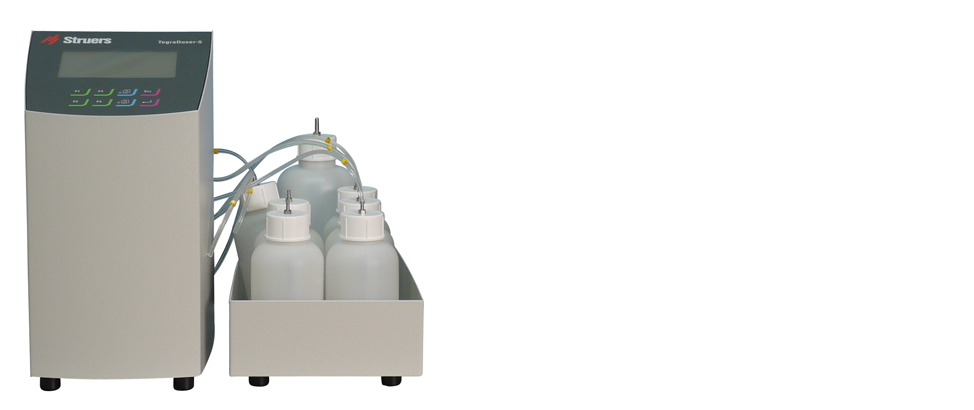

TegraDoser Remote for enclosed cells
Dosing unit and database for preparation methods. With peristaltic pumps. For automatic dosing of diamond suspensions and lubricants. Can be used for supply of water. TegraDoser Remote is placed outside the enclosed cell. The nozzle block is mounted on TegraSystem Remote. The peristaltic pumps cannot reverse. The built-in database contains the ten Metalog Guide methods and has a capacity for additional 190 user-defined preparation methods. Length of tubes is 8.0 m; if other lengths are wanted, specify when ordering.
With six pumps for diamond suspensions or lubricants and one pump for water.
With six pumps for diamond suspensions or lubricants and one pump for water.
Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards.
Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.
